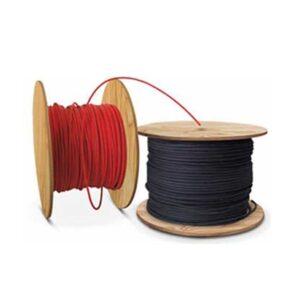

1.5 kVDC H1Z2Z2-K Cables for Photovoltaic Systems
APPLICATIONS:
The interconnection cable used in
photovoltaic power plants is
called solar cable, and
it links solar panels with other electrical parts of a
photovoltaic system.
According to BS50618 the
cables can be used with class II equipment.
CONSTRUCTION:
CONDUCTOR: Flexible Class 5 – IEC 60228 annealed copper that has been tinned.
STANDARDS : TUV 2 PFG 1169/08 and BS EN 50618.
INSULATION : 1.5KVDC Cross Linked (XLPO) to BS EN 50618.
VOLTAGE RATING: 1.5 kVDC .
SHEATH: Cross Linked to BS EN 50618:2014 (XLPO)..
OPERATING TEMP: -40° C to +120° C. .
SHEATH COLOUR: BLACK (Other Colour on request).
In photovoltaic power plants, solar cable is
the connector wire used to
link solar panels and
other electrical parts of
a photovoltaic system.
GENERAL INFORMATION:
Cross-linked polyethylene compound is referred to
as XLPO. It has
superb mechanical and
electrical properties.
The test for single insulated wire and
cable is IEC 60332-1.
The test technique and requirements are
shown in the accompanying image.
After the predetermined amount of
time, the cable must still be intact for
at least 50 mm, as measured from the higher support.
Halogen-free- Based on the halogen content and
the acidity of
the cable’s gases, halogen free is defined as
the absence of halogens like chlorine and fluorine.
Smoke emission – Visibility in a
fire is referred to
as smoke emission.
The vision improves as the
light transmittance increases.
The minimum light transmittance required for
IEC 61034-2 testing is more than 60%.
BSEN 50267-2-1 -Identify the material’s halogen content.
